JW8101

Bench-top Optical Power Meter


Features
* External detector makes the testing operation more convenient.
* 850~1700nm wide wavelength range, wavelength can be adjustable in 1nm increments.
* High accuracy, the uncertainty is ±3％
* Display resolution 0.01dB
* Wide Power Measurement range  (+5～-75dBm)
* User self-calibration function
* “Ref” setting enables the user to retrieve and display the measurement that has been stored as a reference. Link loss test result obtained automatically without any manual calculation.
* Adopt the new Data Acquisition technology to ensure optimum signal-noise ratio.
* Use the bare fiber tip to realize power measurement with bare fiber
* Enables data transfer to a PC via RS232 communication port as well as data storage automatically.

Applications

- Maintenance in Telecom

- Maintenance CATV

- Fiber Optic Lab Testing

- Other Fiber Optic Measurements

Request quote

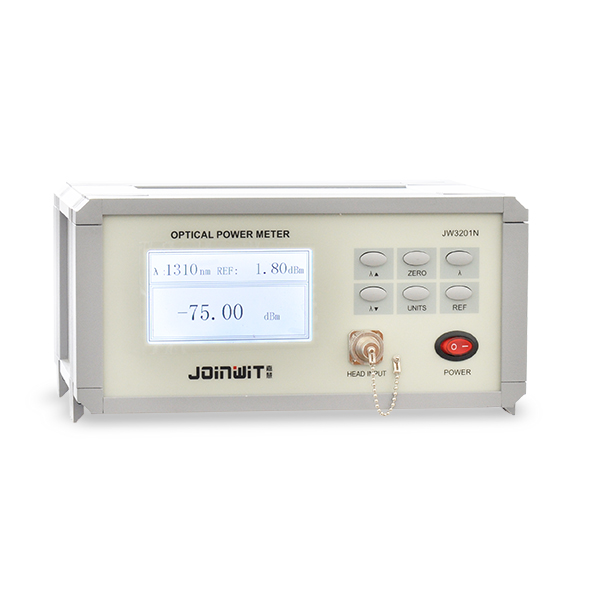

JW3201N Bench-top Optical Power Meter is a high precision and wide measurement range test instrument which designed specially aim at passive components factories, R&D institutions and universities. With features of accurate measurements, durable use and easy operation, JW3201N Bench-top Optical Power Meter becomes a perfect test equipment in fiber optic works which can instead the advanced imported products with its high cost-performance ratio.
Profile
​1
Products

Main Unit,

External Detectors for N1 and N2,

RS232 data transfer cable,

Power supply Adaptor,

Software CD,

Cotton swabs,

User Manual

​2
Specifications
TypeJW3201N
Wavelength Range(nm)850～1700 (in 1nm increments)
Calibrated Wavelength(nm)850，980，1300，1310，1480，1490，1550，1625
Photo Detector InGaAs
Measurement  Range (dBm)+5～-75dBm (other measurement range can be customized)
Intrinsic Uncertainty±3%
Communication interfaceRS232
Resolution(dB)0.01dB
Optical ConnectorFC
Power SupplyAC90～260V，50Hz
Operating Temperature (℃)-10~+40
Storage Temperature (℃)-25~+70
Dimension(mm)260*190*120
Weight (kg)2.75
​4
Ordering Information
​3
Standard Packages
Model
Description
JW3201N－X

JW3201N0: Built-in Detector

JW3201N1: Horizontal Detector

JW3201N2: Vertical Detector

 JW-430JW-430 Bare Fiber Tip
